The Analog Devices ADuC702x Evaluation Board works with the ULINK-ME USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

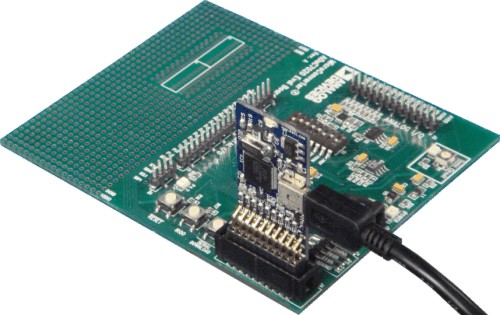

ULINK-ME Adapter Connected to ADuC702x
To download and run an example project using ULINK-ME with the Analog Devices ADuc702x Board:
- Connect the ULINK-ME Adapter to the JTAG port ADuC702x evaluation board.
- Set S1 DIP switches 1, 3 and 8 ON.
- Connect the power adapter included with the kit to the board at J5.
- Start µVision.
- Select the DIMMER.UV2 example project from C:\KEIL\ARM\BOARDS\ADI\ADUC702X\.
Click the Download button to download the program to the target board.
Click the Debug button to start the debugger.
Click the Run button to start the program running on the target board.
