Usage tips

This page explains how to get the best display of your application's data in System Analyzer.


Elements of the display

The following elements are present in the System Analyzer window:

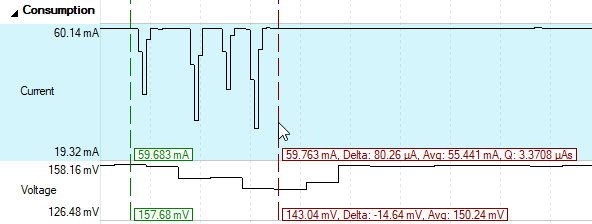

  • The values next to the red cursor display the differences to the green marker (if set):
    Value delta
    The first value is the actual current/voltage value.
    Delta is the difference to the value at the green marker.
    Avg is the average value of the readings in between the cursor lines.
    Q is the total charge in between the cursor lines.
  • X’es mean that there is no data available
    No data
  • “Grid” in the lower left corner displays the time between two grid lines:
  • Blue markers show the start and stop of program execution. This helps to identify current spikes:

Displaying errors

Sometimes, measurement values cannot be displayed correctly. This is indicated using different line colors.

  • If you have selected the wrong shunt for measuring current or voltage, a red line will indicate this. Also, the marker's tooltip will display "Value out of Measurement Range":

    Adjust the shunt resistor value.

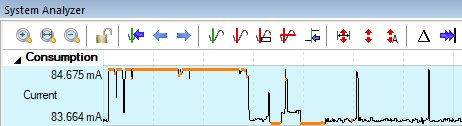

  • If you zoom into a signal, you can work with the scale to optimize the signal display in that zoom area. When zooming out again, some parts of the signal might not display correctly. This is indicated by an orange line:

    Use auto-scaling to display the whole signal again.
  • Any block in System Analyzer that is marked with a red box requires attention as the capturing of the event/exception/thread was not successful:


You can zoom in or out of signals using the mouse wheel or the zoom buttons:

  • Mouse wheel zoom happens on mouse position.
  • Button zoom happens on green marker line (if visible), or on the center of the screen

Change the signal scale manually

To manually change the signal scale in System Analyzer, follow these steps:

Double click on the minimum or maximum scale text Double-click
Enter the new value Enter value
ESC key will cancel
For power measurement, valid characters are (next to the numbers): m, µ, u, n and the unit (V, A) Enter with unit

Manage signals

Running through the power measurement results, use the following hints to create a convenient signal display:

  • To change the height of a signal, drag the lower limit of the signal; the cursor will change:
    Drag and zoom vertical
  • To change the sidebar’s width, drag the right limit; the cursor will change:
    Drag and zoom horizontal
  • Select a signal by left-clicking on it. Alternatively, navigate with the cursor keys up/down:
    Select signal
  • Left/right cursor keys are used to navigate over the selected signal’s transitions.
  • Holding the SHIFT key down snaps cursors on transition for the underlying signal.
  • A signal (or a group) can be moved inside it’s group when pressing and holding the left mouse button in the sidebar, then move the signal:
    Move signal
  • To make a signal sticky, left-click on it at the beginning of the signal name:
    Stick signal
    An icon will appear in front of the signal’s name:
    Sticky signal
  • When clicking the group expand icon, it will have three stages:
    expanded: Expanded group
    sticky only: Sticky group
    collapsed: Collapsed group

Working with power consumption data

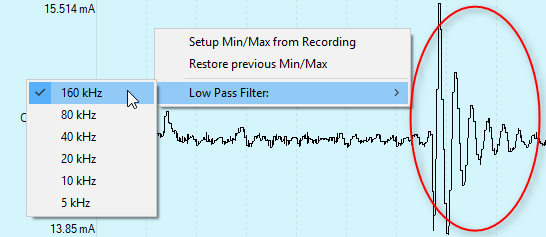

Selectable from the context menu, the power data can be filtered. Select 160 kHz filtering to have a great view on all spikes and their height or “special” noise, such as overshoots:

160 kHz Filter

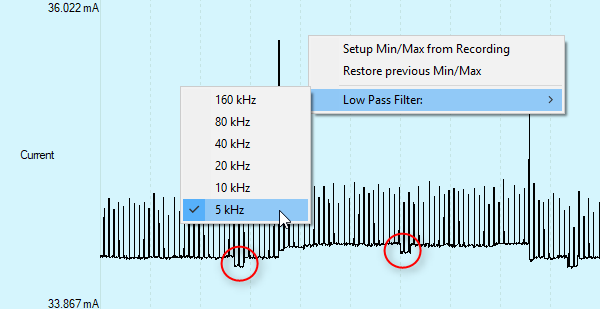

Select 5 kHz to have a great view of what’s hidden in the noise, for example current drain of the target's internal pull-up resistors:

5 kHz Filter

You can calibrate the power measurement offset introduced by ULINKplus by using the Zero Point Adjustment in the context menu:

Zero Point Adjustment

This will compensate for the offset and show 0 mA at the current position. You can also remove this adjustment at a later point in time, if required.


Power consumption data is only available when using a ULINKplus debug adapter.
