Connecting ULINK-ME

ULINK-ME is equipped with both a 10-pin (1.28mm/0.05") and a 20-pin (2.54mm/0.1") Arm interface connector. The 10-pin connector uses a ribbon cable to connect to your board, while the 20-pin connector, mounted on the ULINK-ME board, may be plugged directly into a standard Arm 20-pin interface connector on your target board.

10-pin Connector

ULINK-ME Using 10-pin Connector
ULINK-ME Connected Via 10-pin JTAG Connector

The 10-pin ribbon cable (included with your ULINK-ME board) connects using the Arm 10-pin interface.

20-pin Connector

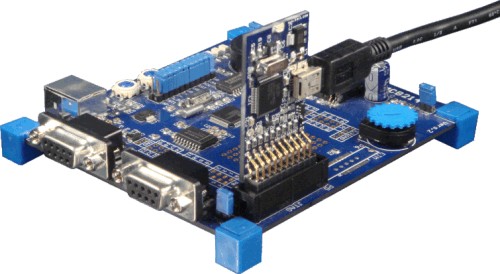

ULINK-ME Using 20-pin Connector
ULINK-ME Connected Via 20-pin JTAG Connector

The ULINK-ME Adapter plugs directly into the Arm 20-pin interface (2.54mm/0.1" pin spacing) connector on your target board.
