Requirements

The MON51 Monitor has the following requirements:

  • MCU compatible with 80C51 or 80C52. The following target debugging solutions are available for other architecture variants:
    • MON390 supports Dallas 390/400/5240 derivatives.
    • MONADI support Analog Devices derivatives.
    • FlashMon51 supports devices with on-chip or external Flash memory.
    • ISD51 supports devices without von Neumann memory.
  • Six (6) bytes of stack space in the user program being tested.
  • 256 bytes von Neumann memory for the MON51 data area.
  • 5K bytes program code memory starting at address 0000h. This is where the MON51 monitor resides.
  • 5K bytes von Neumann memory for trace buffer (if used).
  • 1-5 port pins for code banking hardware support (if used).
  • Adequate von Neumann memory to hold the application being tested.
  • Serial interface. This may be the on-chip 8051 UART or it may be an external UART (like the 16450 or 16550 used on standard PC's).

Note

  • von Neumann memory must be accessible from XDATA and CODE space. Typically, this is accomplished by connecting the /PSEN and /RD MCU signals to an AND gate and the output to the /RD line of a RAM. Applications downloaded to MON51 must be executed from CODE memory. The von Neumann architecture allows the monitor to write the program (using the /WR signal from the 8051) into XDATA memory and execute the program (using the /PSEN signal) from CODE.

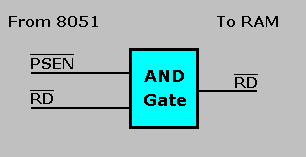

  • AND Gate Diagram for Von Neumann Memory
