[ブレークポイント](Breakpoints)ダイアログ

µVision4 は、複雑なブレークポイントもサポートしています。変数に特定の値が含まれている場合に、プログラムの実行を停止したいことがあります。以下の例は、current.time.sec に値 3 が書き込まれたときの停止方法を示します。

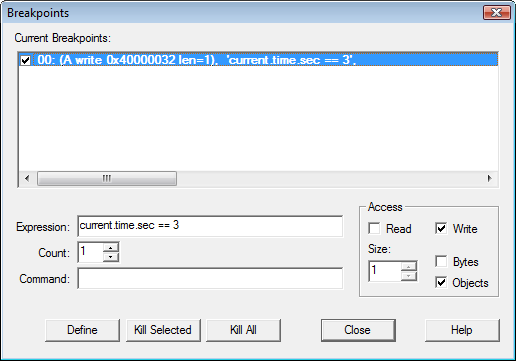

[ブレークポイント](Breakpoints)ダイアログ

[デバッグ](Debug)メニューから[ブレークポイント](Breakpoints)ダイアログを開きます。式に「current.time.sec==3」と入力します。[書き込み](Write)チェックボックスを選択します(このオプションは、式が書き込まれた場合にのみブレーク条件がテストされるように指定できます)。[定義](Define)ボタンをクリックして、ブレークポイントを設定します。

ブレークポイント条件をテストするには、以下の手順を実行します。

シンボル 説明
[リセット](Reset)ボタン CPU をリセットします。
[実行](Run)ボタン プログラムの実行が停止されたら、MEASURE プログラムの実行を開始します。

数秒後に、µVision4 は実行を停止します。デバッグウィンドウのプログラムカウンタ行には、ブレークポイントが発生した行がマークされます。
