Simulate I/O Ports

µVision provides dialogs that show the status of all I/O ports. The I/O Pins are represented with VTREGs. You may use these VTREGs together with signal functions or breakpoints as shown in the following example program.

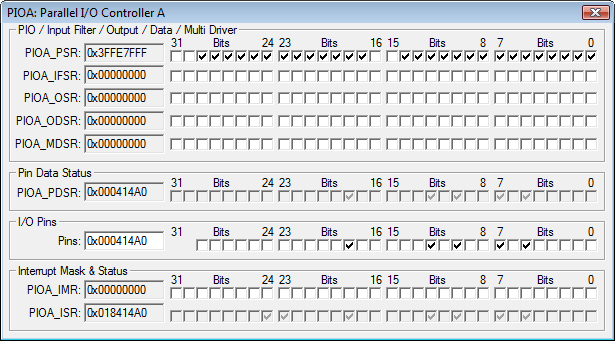

PIOA Simulation Dialog

// in your C user program
PortAvalue = PIOA_PDSR; // read Port A input

Breakpoints that you define in the µVision Simulator:

bs write PORT3, 1, "printf (\"Port3 value=%X\\n\", PORT3)"
bs read PORT5, 1, "PORT5 = getint (\"Input Port5 value\")"

During program execution, µVision asks for a Port5 input value. If a new output value is written to Port3, a message is printed in the Output Window. Refer to CPU Pin Registers (VTREGs).

Port Input Dialog
