Review Peripherals and CPU Configuration

The µVision4 debugger provides dialogs for most peripherals that can be used to verify the initialization value. For example, with the dialog Peripheral — Advanced Power Management Controller you review the microcontroller configuration of the Atmel AT91M55800A device.

Check microcontroller and peripheral initialization values with the simulator first, since wrong settings may not work with the target debugger.

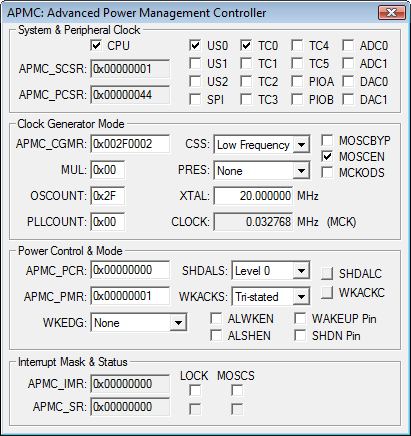

Advanced Power Management Controller Peripheral Dialog
