Trace Navigation

The Trace Navigation window allows scrolling through the records of the Trace Data window. This feature is available for Cortex-M devices.

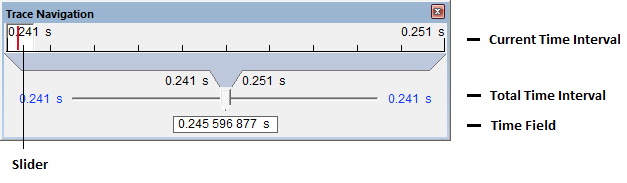

Trace Navigation bar

Where

Current Time Interval Shows a time interval of 10 ms. The white section indicates that trace data are available for that period. The gray section indicates that no trace data are available, or the time interval is outside of the trace boundaries.
Total Time Interval Shows the start and end time of available trace data.
Current Time Interval Slider Move the slider to scroll through trace data records belonging to the current time interval. As an alternative, arrow-keys can be used for scrolling.
Total Time Interval Slider The silder has a fixed position due to the reduced amount of data captured when using the Simulator and cannot be used for scrolling.
Time Field Shows the mid value of the Current Time Line. Enter a value into the field to jump to a certain time stamp.
