Create HEX File

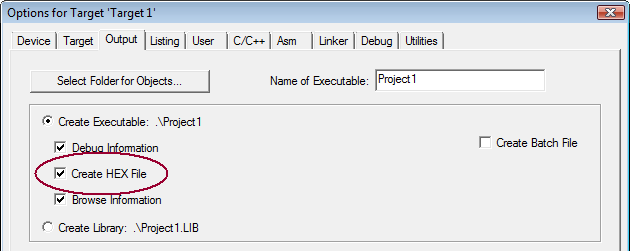

Once you have successfully generated your application you can start debugging. After you have tested your application, it is required to create an Intel HEX file to download the software into an EPROM programmer or simulator. µVision4 creates HEX files with each build process when Create HEX file under Options for Target — Output is enabled.
You may start your PROM programming utility after the make process when you specify the program under the option User — Run User Program #1 as explained under Start External Tools.
