µVision3 fully simulates the timing and logic behavior of on-chip A/D and D/A converters.
- Dialogs that are available in the Peripheral menu help you to verify the settings of these peripherals. You may directly enter Analog Input values in these dialogs as shown in the picture below.
- Virtual Simulation Registers (VTREG's) that represent the CPU pin and can be used in Expressions or Debug Functions.

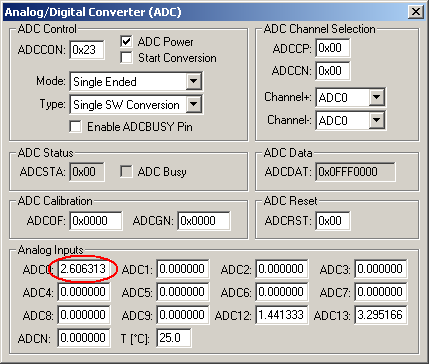

A/D Converter Dialog of ADuC7000 Devices.
The red circle shows an Analog Input value that you may alter manually.
This section provides simulation scripts that are using VTREGs and Signal Functions. The following examples are available:
