Kernel Awareness

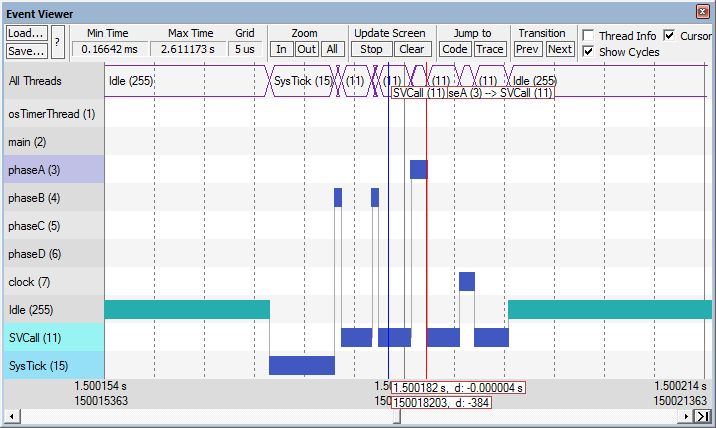

Kernel Awareness windows display information about the system state and tasks. The window Event Viewer shows the task-switching history of an application on a time graph. The window RTX Tasks and System displays the system state.
To view the data:
-
Set Options for Target - Target - Operating system to
RTX Kernel.
-
Enable ITM Stimulus Port 31.
-
Open Debug — OS Support — Event Viewer.
-

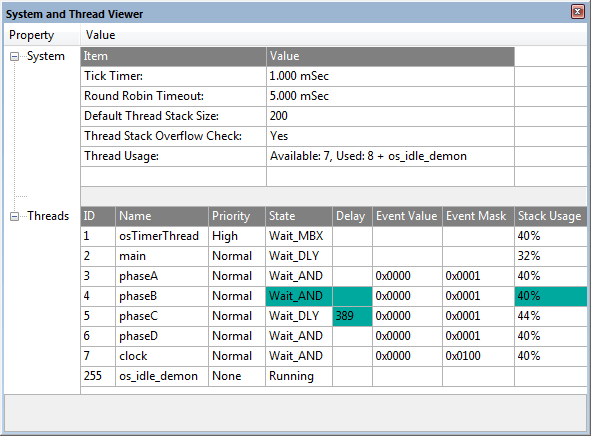

Open Debug — OS Support — RTX Tasks and System.
