Trace Navigation (Cortex-M)

The Trace Navigation window allows scrolling through the records of the Trace Data (Cortex-M) window. This feature is available for Cortex-M devices that support capturing trace.

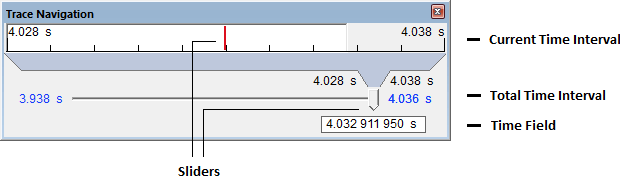

Trace Navigation bar

Where

Current Time Interval Shows a time interval of 10 ms. The white section indicates that trace data are available for that period. The gray section indicates that no trace data are available, or the time interval is outside of the trace boundaries.
Total Time Interval Shows the start and end time of available trace data.
Current Time Interval Slider Move the slider to scroll through trace data records belonging to the current time interval. As an alternative, arrow-keys can be used for scrolling.
Total Time Interval Slider Move the slider to scroll through the all available trace data records. As an alternative, arrow-keys can be used for scrolling.
Time Field Shows the mid value of the Current Time Line. Enter a value into the field to jump to a certain time stamp.
