Phytec LPC229x

The Phytec LPC229x Evaluation Board works with the ULINKpro USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

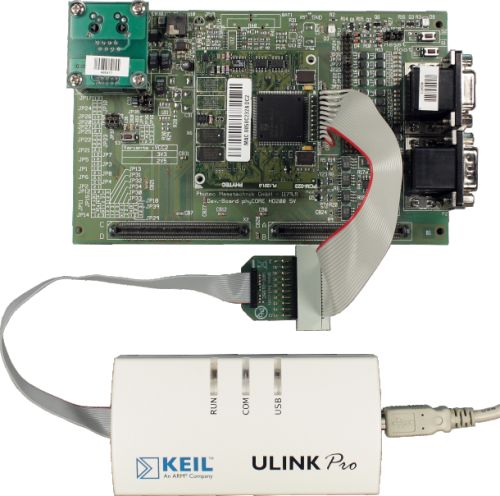

ULINKpro Adapter Connected to the LPC229x Board

To download and run an example project using ULINKpro with the Phytec LPC229x Board:

1. Connect the 20-pin ribbon connector from the ULINKpro Adapter to the JTAG connector on the Phytec LPC229x evaluation board.
2. Connect the power adapter to the board.
3. Start µVision.
4. Select the BLINKY.UV2 example project from C:\KEIL\ARM\BOARDS\PHYTEC\LPC229x\BLINKY\.
5. Click the Download button to download the program to the target board.
6. Click the Debug button to start the debugger.
7. Click the Run button to start the program running on the target board.
