The ULINK-ME Adapter has one LED that indicates connection status in the following ways:
- Slow Flashing indicates that ULINK-ME is ready to communicate with the debugger.
- Fast Flashing indicates that the target board is executing the program under debugger control.
- ON during debugging indicates that the debugger has halted the target board.
- ON during download indicates that target download/verification is in progress.

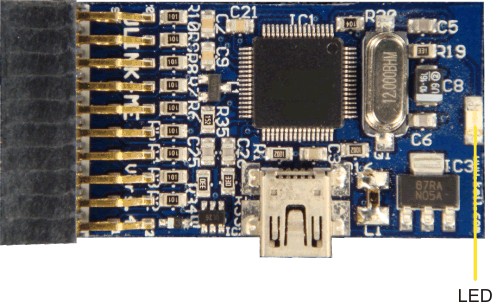

ULINK-ME Adapter - LED
