The Keil MCBXC167 Evaluation Board works with the ULINK2 USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

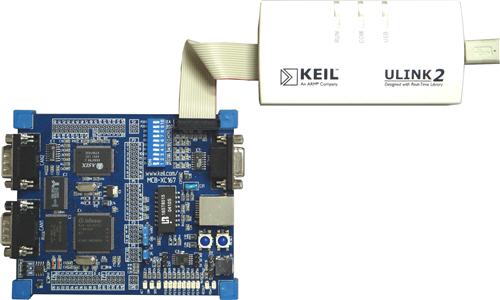

ULINK2 Adapter Connected to MCBXC167
To download and run an example project using ULINK2 with the Keil MCBXC167 Board:
- Connect the 20-pin ribbon connector from the ULINK2 Adapter to the JTAG port MCBXC167 evaluation board.
- Set the DIP switches 2 through 6 and 8 ON.
- Connect power to the board using an external 6 Volt DC power supply. The connection uses a 1.3mm barrel plug.
- Start µVision.
- Select the BLINKY.UV2 example project from C:\KEIL\C166\KEIL MCBXC167\.
Click the Download button to download the program to the target board.
Click the Debug button to start the debugger.
Click the Run button to start the program running on the target board.
