The Keil MCBSTR750 Evaluation Board works with the ULINK2 USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

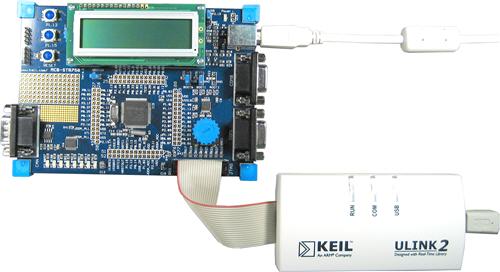

ULINK2 Adapter Connected to MCBSTR750
To download and run an example project using ULINK2 with the Keil MCBSTR750 Board:
- Connect the 20-pin ribbon connector from the ULINK2 Adapter to the JTAG port MCBSTR750 evaluation board.
- Make sure that Jumper BOOT0, BOOT1 and J1 are ON, and the J2 jumper is in the P2.15 position.
- Connect power to the board using an external 7 - 9 Volt DC power supply.
- Start µVision.
- Select the BLINKY.UV2 example project from C:\KEIL\ARM\BOARDS\KEIL\MCBSTR750\BLINKY\.
Click the Download button to download the program to the target board.
Click the Debug button to start the debugger.
Click the Run button to start the program running on the target board.
