Infineon Easy UTAH

The Infineon Easy UTAH Evaluation Board works with the ULINK2 USB-JTAG Adapter. The following instructions show you how to connect and run an example program on this board.

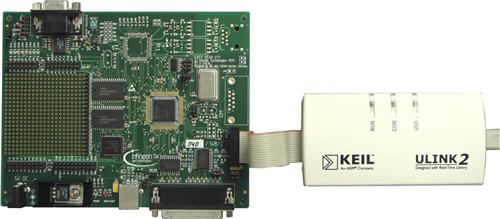

ULINK2 Adapter Connected to Easy UTAH

To download and run an example project using ULINK2 with the Infineon Easy UTAH Board:

1. Connect the 16-pin ribbon connector from the ULINK2 Adapter to the OCDS connector (JP2) on the Easy UTAH evaluation board.
2. Install the following jumpers:



3. Connect power to the board using an external 6 Volt DC power supply. The connection uses a 5.5mm barrel plug.
4. Start µVision.
5. Select the UTAH_BLINKY.UV2 example project from root\C166\BOARDS\INFINEON EASY UTAH\.
6. Click the Download button to download the program to the target board.
7. Click the Debug button to start the debugger.
8. Click the Run button to start the program running on the target board.
