The Infineon XC800 ULINK Driver provides the software interface for the Keil ULINK USB-JTAG Adapter to the Infineon On-Chip Debug System (OCDS), which is available on the Infineon XC800 device series.
The Infineon XC800 ULINK Driver interfaces with the µVision IDE/Debugger and offers:
- A broad range of debugging features using standard production chips.
- High-speed interface for Flash Programming.
ULINK USB Interface

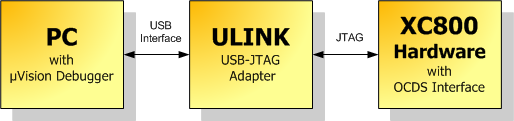

The Keil ULINK USB-OCDS Adapter connects your PC USB port to the XC800 OCDS connector pins. Your hardware must have an OCDS connector to use ULINK.
As an alternative, you may use the Infineon DAS Client for XC800 to access DAS compatible hardware.
