MCBXC800 User's Guide
Introduction MCBXC866 MCBXC88x Setup
MCBXC88x Board Setup MCBXC88x Board Components Connecting the MCBXC88x Configuring the MCBXC88x MCBXC88x Jumper Descriptions MCBXC88x Connectors Install USB Device Driver Configure the COM Port Theory of Operation Block Diagram PCB Illustration Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration OCDS (JTAG) Interface LEDs Push Button Potentiometer CAN Interface USB Interface Writing Programs Example Programs Using Infineon XC800 Flash Download Using Infineon XC800 Target Driver Infineon DAvEUSB Interface
The USB interface uses the standard USB connector on the MCBXC88x board.

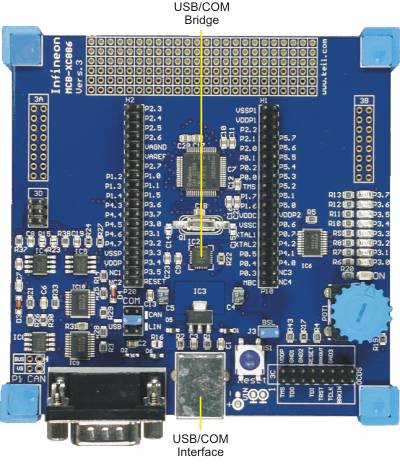

The MCBXC88x board uses the USB connector for the power supply and UART connection to the PC. The USB/COM bridge (IC2) converts the UART signals to USB. The USB/COM interface may be used for user I/O or in bootstrap mode for Flash programming tools.
