MCBXC800 User's Guide
Introduction
MCBXC866
MCBXC88x
Setup
MCBXC88x Board Setup
MCBXC88x Board Components
Connecting the MCBXC88x
Configuring the MCBXC88x
MCBXC88x Jumper Descriptions
MCBXC88x Connectors
Install USB Device Driver
Configure the COM Port
Theory of Operation
Block Diagram
PCB Illustration
Schematics
Technical Data
Prototyping Area
Microcontroller
Power Supply
Configuration
OCDS (JTAG) Interface
LEDs
Push Button
Potentiometer
CAN Interface
USB Interface
Writing Programs
Example Programs
Using Infineon XC800 Flash Download
Using Infineon XC800 Target Driver
Infineon DAvE
Prototyping Area

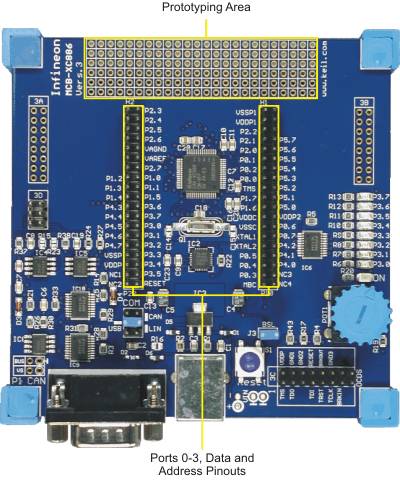

The prototyping area provides blocks for connecting the address and data lines, and ports P0, P1, P2, and P3.
Note
- All microcontroller signals are brought out to pins and are driven directly by the microcontroller. Exercise caution to avoid overloading these signal lines.
