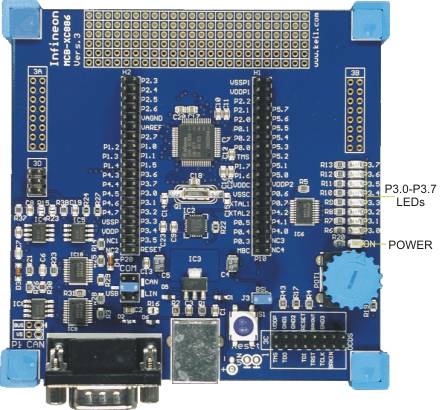

The LEDs on the MCBXC88x board are:
- The POWER LED indicate that power is present on the board.
- P3.0 - P3.7 connect to the Port 3 pins. These LEDs are easy to set and reset during program development to indicate program status.
