MCBXC866 Board Setup MCBXC866 Board Components Connecting the MCBXC866 Configuring the MCBXC866 MCBXC866 Jumper Descriptions MCBXC866 Connectors Theory of Operation Block Diagram PCB Illustration Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration OCDS (JTAG) Interface LEDs Push Button Potentiometer Serial Port CAN Interface MCBXC88x Writing Programs Example Programs Using Infineon XC800 Flash Download Using Infineon XC800 Target Driver Infineon DAvESerial Port

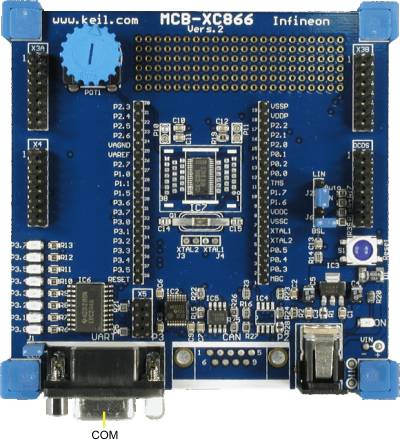

The MCBXC866 board supports the on-chip serial UART which uses a level-shifter (IC2) to convert the logic signals to RS-232 voltage levels. The ASC0 UART may be used in bootstrap mode to download Flash programming tools or other debugging utilities.
The serial UART port (COM) is configured as a standard 3-wire interface. The DB9 connector is wired to loop the PC's handshaking signals back to the PC. Refer to the figure below for details.
