MCBXC800 User's Guide
Introduction
MCBXC866 Setup
MCBXC866 Board Setup MCBXC866 Board Components Connecting the MCBXC866 Configuring the MCBXC866 MCBXC866 Jumper Descriptions MCBXC866 Connectors Theory of Operation Block Diagram PCB Illustration Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration OCDS (JTAG) Interface LEDs Push Button Potentiometer Serial Port CAN Interface MCBXC88x Writing Programs Example Programs Using Infineon XC800 Flash Download Using Infineon XC800 Target Driver Infineon DAvEPower Supply

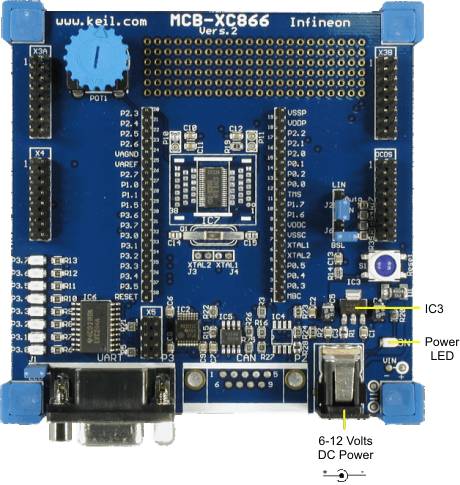

Power is supplied to the MCBXC866 board by an external 6 - 12 Volt DC power supply which should be capable of providing 100mA.
The voltage regulator (IC3) generates 5 Volts or 3.3 Volts DC.
The connection uses a standard barrel plug. The center hole provides positive voltage.
 | Caution: Using a power supply with the wrong polarity may damage the board. |
