MCBXC800 User's Guide
CAN Interface

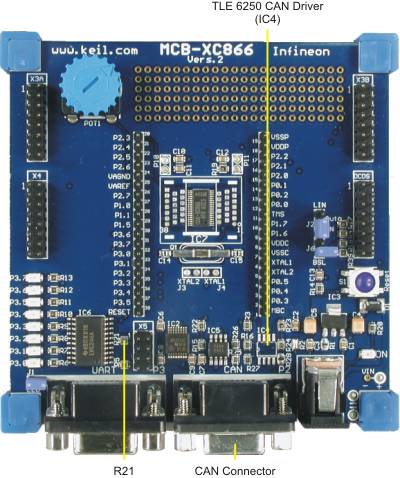

The single CAN interface requires a TLE6250 CAN driver (IC4) and termination resistor (R21) on the MCBXC866 board. IC4 is not populated for the MCBXC866 board.
The CAN DB9 connector is wired so that Pin 2 provides the CANL signal and Pin 7 provides the CANH signal. These pins are connected to the TLE 6250 CAN driver IC.
Note
- CAN termination resistors make it easy to connect the MCBXC866 board to your CAN network but they are not always required. When connecting the MCBXC866 Board to a CAN network, you may not want the termination resistor R21 attached to the bus.
