MCBXC800 User's Guide
MCBXC866 Board Components

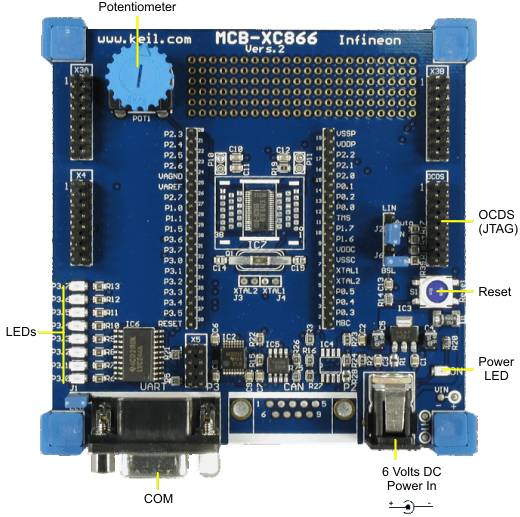

The following illustration shows the important interface and hardware components of the MCBXC866 board.
