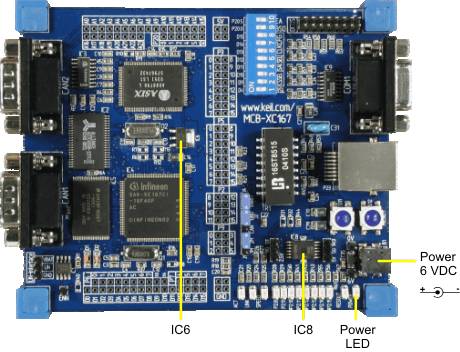

Power is supplied to the MCBXC167 board by an external 6 Volt DC power supply which must be capable of providing 400mA. The connection uses a 1.3mm barrel plug, with the center conductor providing positive voltage.
A diode protects your board against reverse polarity on the power connnector. The Power LED indicates when power is applied to the board.
The voltage regulator IC8 generates 2.5 Volts and 5 Volts DC, and the IC6 generates 3.3 Volts DC.
