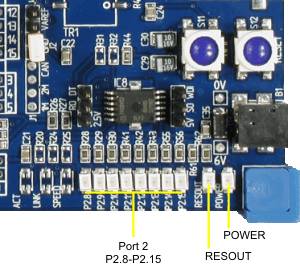

The LEDs on the MCBXC167 BASIC board are:
- POWER shows that the power supply is connected to the board.
- RESOUT indicates status of the Reset Output pin.
- P2.8 - P2.15 connect to eight Port 2 pins and may display program status while testing your applications.

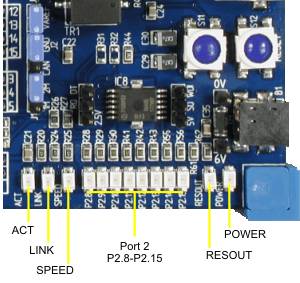

The additional LEDs on the MCBXC167 NET board for the Ethernet Controller are:
- ACT shows activity (transmit or receive) on the Ethernet connection.
- LINK indicates a physical link to another Ethernet device.
- SPEED is active in the 100Mbit mode of the Ethernet controller.
