MCBXC167 User's Guide
Introduction Setup Theory of Operation
Block Diagram PCB Illustration Schematics Technical Data Prototyping Area Microcontroller Power Supply Configuration OCDS (JTAG) Interface LEDs Push Buttons Serial Port CAN Interface Ethernet Interface LIN Interface Writing Programs Example Programs Infineon Memtool Utility Startup CodeEthernet Interface

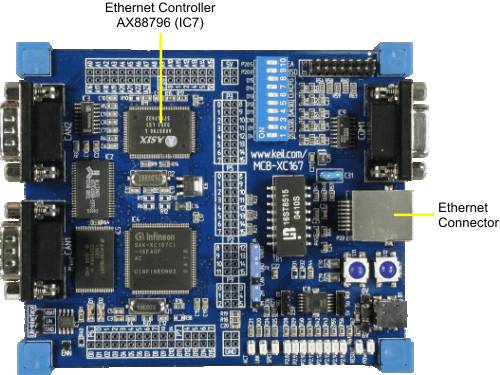

The Ethernet Interface on the MCBXC167 NET board is a standard 10/100 BASE (10/100 Mbit) interface that allows direct connection to most Ethernet networks. The Ethernet controller AX88796 (IC7) interfaces to the Ethernet connector.
The CS2/ chip select from the XC167 microcontroller accesses the Ethernet controller as a memory mapped device.
