Downloading with ULINK

Downloading with ULINK

  1. Connect the ULINK to the JTAG connector of the MCBXC167 Board. Note that the red cable marks pin 1 of the JTAG-connector.
    Make sure that the jumper J6 (BSL) is OFF.

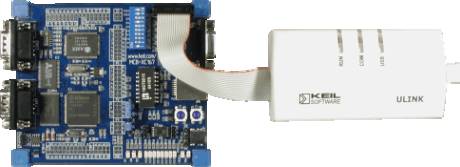

    MCBXC167 Board Connected to ULINK

    MCBXC167 Board Connected to ULINK

    Note

    • If your application program puts the XC167 device in Power Down or Idle mode, the OCDS in the Infineon XC167 device (and subsequently the ULINK) stops working. Therefore, do not put the XC167 device device into the power saving modes during the software development cycle.
  2. Power up the MCBXC167 Board.
  3. Configure Flash Programming in the Project Options for Target Utilities dialog.

    Options for Target ButtonClick the toolbar button and select the Utilities tab.

    Set the Use Target Driver for Flash Programming option, then select the OCDS Driver for XC16x as the Flash programming tool.

    Use Target Driver for Flash Selection

    Check the Update Target before Debugging option to ensure that the Flash ROM gets programmed whenever the debugger starts.

    Update Target Before Debugging

    Click the Settings button to open the Flash Download Setup dialog.

  4. Configure the Flash Download Setup dialog as shown.

    XC800 ULINK Driver Setup

    Click OK to accept the XC167 ULINK Driver Setup settings, then OK again to store the Options for Target setting.

  5. Download to Flash.

    Download to Flash ButtonUse the Download to Flash toobar button or the Flash — Download command of µVision to download the application program into the XC16x device.

    The ULINK-JTAG adapter can also be used for downloading and debugging application code in the Flash ROM of the Infineon XC167 microcontroller.
