MCBXC167 User's Guide
Introduction Setup Theory of Operation Writing Programs Example Programs MON166 BLINKY
Building BLINKY Downloading BLINKY Debugging BLINKY Checking Serial Output OCDS BLINKY Building BLINKY Downloading BLINKY Debugging BLINKY Checking Serial Output EASYWEB Set DIP Switches for EASYWEB Building EASYWEB Downloading EASYWEB Debugging EASYWEB Checking Output PLL_DEMO Set DIP Switches for PLL_DEMO Building PLL_DEMO Downloading PLL_DEMO Debugging PLL_DEMO Checking Output TwinCAN Building TwinCAN Downloading TwinCAN Debugging TwinCAN Checking Output Infineon Memtool Utility Startup CodeSet DIP Switches for PLL_DEMO
For the target "On-Chip Flash: XC16x Board," use the following DIP switch settings with OCDS Debugging:
| BSL | CSSEL | SALSEL | CLKCFG | BSO | EA | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Switch | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| ON | X | X | X | X | ||||||
| OFF | X | X | X | X | X | X | ||||

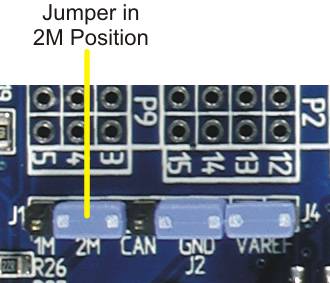

Set jumper J1 to the 2M position.
