MCBXC167 User's Guide
Introduction Setup Theory of Operation Writing Programs Example Programs MON166 BLINKY
Building BLINKY Downloading BLINKY Debugging BLINKY Checking Serial Output OCDS BLINKY Building BLINKY Downloading BLINKY Debugging BLINKY Checking Serial Output EASYWEB Set DIP Switches for EASYWEB Building EASYWEB Downloading EASYWEB Debugging EASYWEB Checking Output PLL_DEMO Set DIP Switches for PLL_DEMO Building PLL_DEMO Downloading PLL_DEMO Debugging PLL_DEMO Checking Output TwinCAN Building TwinCAN Downloading TwinCAN Debugging TwinCAN Checking Output Infineon Memtool Utility Startup CodeChecking Output
To check the serial output from the PLL_Demo program, connect a serial cable from COM1 on the board to an unused COM port on your development PC. Use a terminal emulation program, such as Microsoft Windows HyperTerminal, to display the serial data on your PC monitor.
To start the Microsoft Windows HyperTerminal application, select Start - Programs - Accessories - Communication - HyperTerminal.
Enter a Name for the new connection, for example: MCBXC167.
Select the PC COM port COM1 in Connect Using.

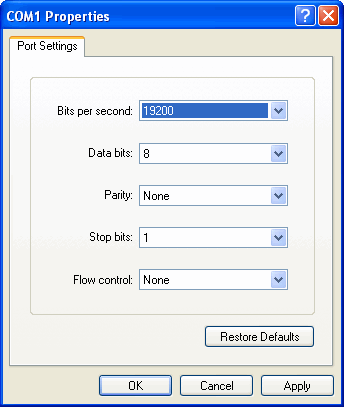

Select 19200 Bits per second, 8 Data bits, Parity None, Stop bits 1 and Flow control None.
Click OK. The text message The CPU currently runs at 20000000 Hz displays from the MCBXC167 Board, where 20000000 Hz is a value that changes as the PLL settings change.
