Push Buttons
The two push buttons on the MCBTWRK60 board are:
- The RESET push button connects to the reset circuit. Pushing this button manually resets the microcontroller.
- SW1 is a general purpose push button that connects to port pin PTA19 of the microcontroller.
- SW2 is a general purpose push button that connects to port pin PTA26 of the microcontroller.
Touch Pads

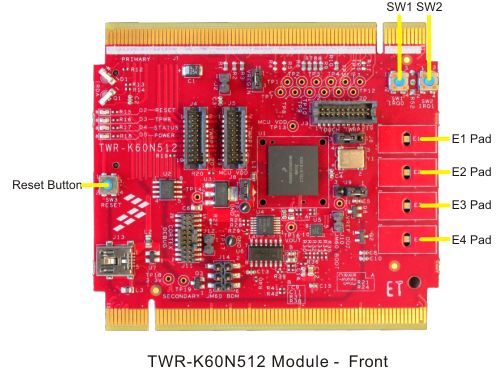

The MCBTWRK60 board has 4 capacitive touch pads (E1-E4) connected to the Touch Sensing Input (TSI) module of the Kinetis MCU. The E1, E2, E3 and E4 touch pads are connected to port pins PTA11, PTA28, PTA29, and PTA10, respectively.
