MCBTMS570 User's Guide
Speaker
The MCBTMS570 I/O board includes a speaker controlled by the TPA311 low-power audio amplifier (IC2).
The TPA311 is controlled via PWM using the HET(EHET30).
Note

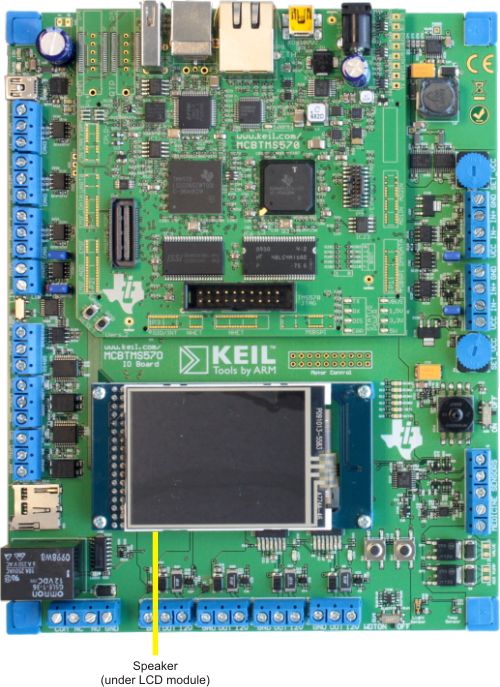

- The speaker and audio amplifier are located underneath the LCD display module.
