Schematics

The MCBTMS570 Development Kit consists of an MCU Board mounted to the IO Board. Detailed IO Board schematics and MCU Board schematics are available in large format on the MCBTMS570 Development Kit information section of the Keil web site.

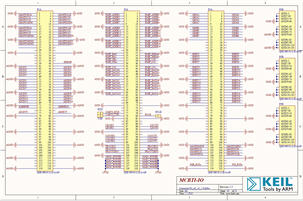

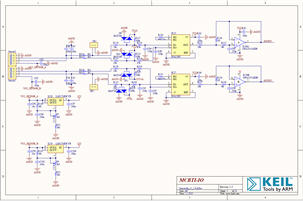

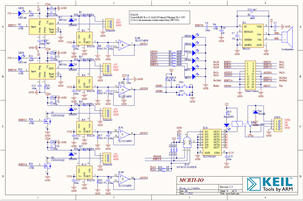

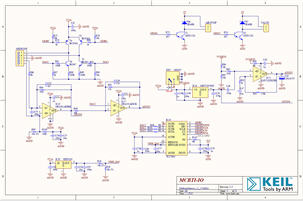

MCBTMS570 IO Board Schematics

MCBTMS570 IO Board Schematics
MCBTMS570 IO Board Schematics
MCBTMS570 IO Board Schematics
MCBTMS570 IO Board Schematics
MCBTMS570 IO Board Schematics
MCBTMS570 IO Board Schematics
MCBTMS570 IO Board Schematics
MCBTMS570 IO Board Schematics
MCBTMS570 IO Board Schematics
MCBTMS570 IO Board Schematics
MCBTMS570 IO Board Schematics

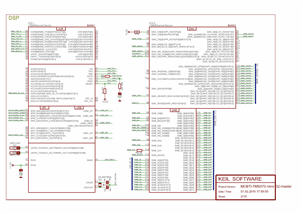

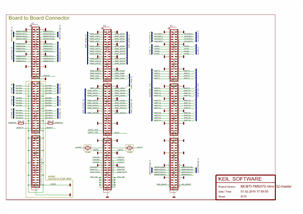

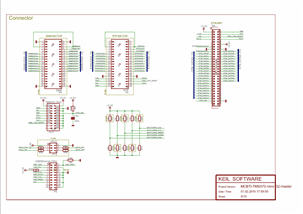

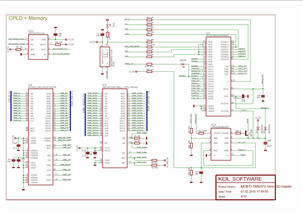

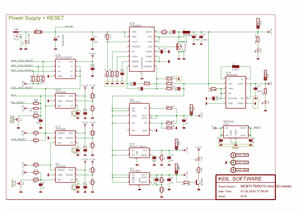

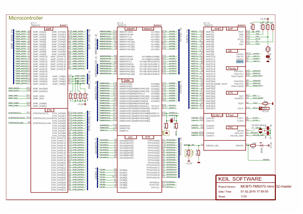

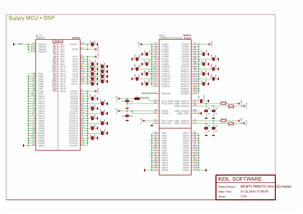

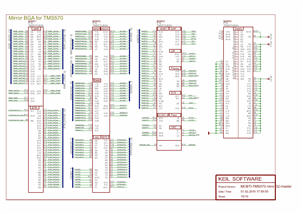

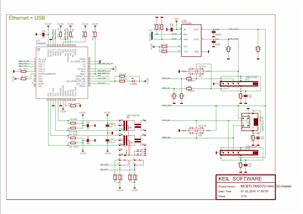

MCBTMS570 MCU Board Schematics

MCBTMS570 MCU Board Schematics
MCBTMS570 MCU Board Schematics
MCBTMS570 MCU Board Schematics
MCBTMS570 MCU Board Schematics
MCBTMS570 MCU Board Schematics
MCBTMS570 MCU Board Schematics
MCBTMS570 MCU Board Schematics
MCBTMS570 MCU Board Schematics
MCBTMS570 MCU Board Schematics
MCBTMS570 MCU Board Schematics
