MCBTMS570 User's Guide
LIN/RS485 Interface

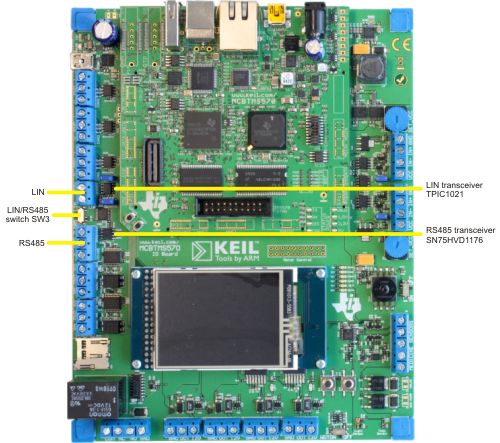

The LIN Interface uses the TPIC1021 transceiver at IC35 and the RS485 Interface uses a SN75HVD1176 transceiver at IC33 on the MCBTMS570 IO board.
The SPDT switch at SW3 determines whether the LIN or RS485 interface is active.
