MCBTMS570 User's Guide
LCD Panel w/Touch Screen

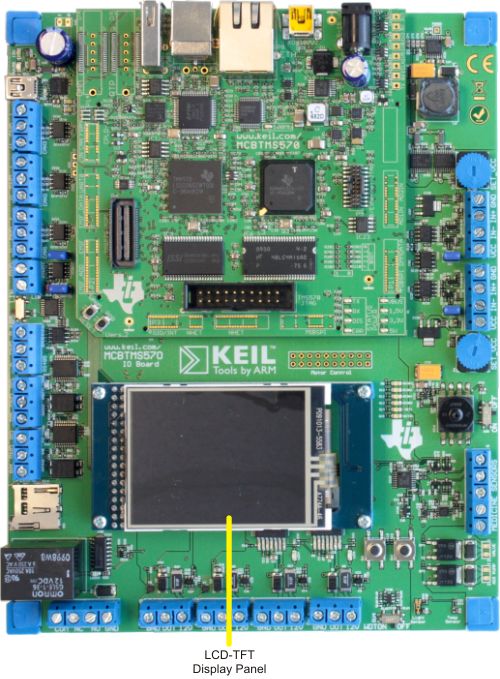

The LCD-TFT color graphics display panel (AMPIRE AM240320L8TNQW) contains a 240x320 pixel screen and connects using a 16-bit interface. The LCD panel is mounted on the MCBTMS570 Display Board, and connects to MCBTMS570 IO Board via 30-pin header.
This LCD panel includes a 4-wire, resistive touch screen controlled by an Texas Instruments STMPE811 touch screen controller.
