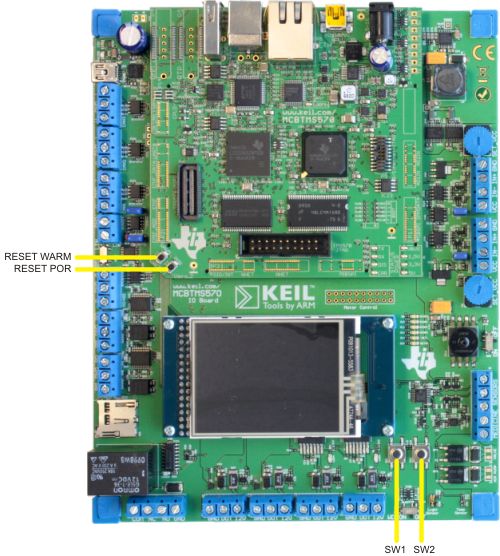

The four push buttons on the MCBTMS570 board set are:
IO Board Push Buttons
- The SW1 push button is available to the user's application and grounds the GIOB3 pin.
- The SW2 push button is available to the user's application and grounds the GIOB6 pin.
MCU Board Push Buttons
- The RESET WARM (S1) push button connects to the RST signal of the microcontroller. This wakes up the microcontroller out of sleep mode.
- The RESET POR (S2) push button connects to the voltage monitor and the power-on reset circuit. This resets the microcontroller.
