MCBTMPM395 User's Guide
USB Interface

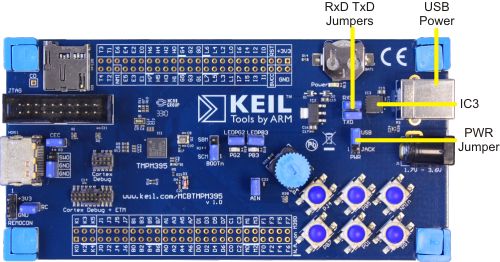

The standard USB B-connector supplies 5 VDC power to the MCBTMPM395 board and allows the board to be configured as a USB device. The RXD and TXD jumpers connect the USB-to-UART bridge controller at IC3 to port pins PE0 and PE1, respectively.
To power the board from a USB device, the PWR jumper must be installed in the USB position.
