MCBTMPM395 User's Guide
LEDs

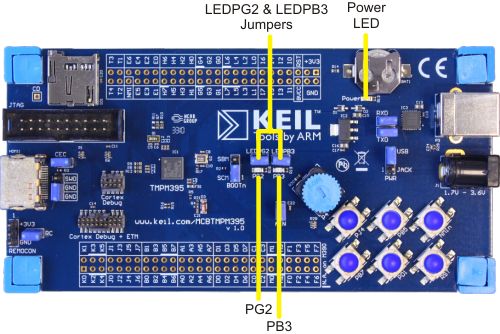

The MCBTMPM395 board has the following LED indicators:
- The POWER LED indicates that 3.3VDC power is present on the board.
- The 2 Port LEDs marked PG2 and PB3 connect to the respective pins on the PG and PB ports. These LEDs are useful for indicating program status while testing your applications. Removing jumper LEDPG2 or LEDPB3 disconnects that LED from its port pin.
