MCBTMPM395 User's Guide
Push Buttons

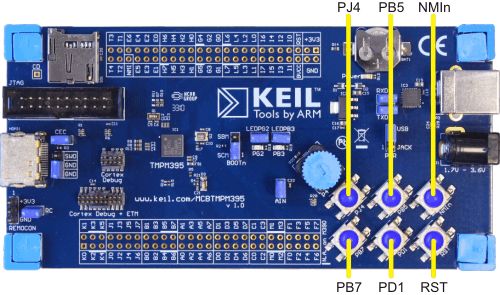

The six push buttons on the MCBTMPM395 board are:
- The RST push button connects to the voltage monitor and the power-up reset circuit. This resets the microcontroller.
- The NMIn push button connects to pin K6(NMIn) of the microcontroller controlling the non-maskable interrupt (NMI) of the TMPM395FWAXBG device.
- The PJ4, PB5, PB7 and PD1 push buttons connect to pin 4 of Port PJ, pins 5 and 7 of Port PB, and pin 1 of Port PD, respectively.
