MCBTMPM395 User's Guide

Debugging with ULINK

Follow these steps to program debugging using the µVision Debugger and the ULINK USB-JTAG Adapter. Detailed information can be found in the µVision User's Guide in the Creating Applications chapter.

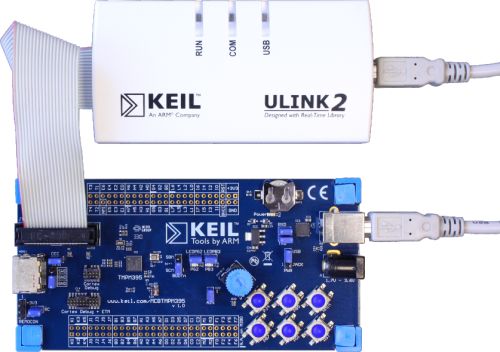

1. Connect ULINK to the JTAG connector of the MCBTMPM395 Board. Note that the red tracer on the ribbon cable marks pin 1 of the JTAG-connector.



2. Power up the MCBTMPM395 Board.
3. Configure the Debugger in the Project — Options for Target — Debug dialog.

   Use the Options for Target toolbar button and click the Debug tab to display the Debug dialog.

   Select Use: and ULINK Cortex Debugger in the drop-down to choose the ULINK USB-JTAG Adapter as the debugging tool.

   Check the Load Application aet Startup and the Run to main() options to load your application and execute code up to the beginning of your main() function when the debugger starts.

4. Click the Settings button to open the Cortex-M Target Driver Setup dialog.

   This dialog displays the IDCODE of the Cortex-M device on the MCBTMPM395 Board.

   Check the SWJ checkbox and select the SW option under Port to use the Single Wire mode interface. Max Clock should be set to 1MHz.




   Select the Verify Code Download option under Download Options to compare the loaded application program with the Flash ROM content. You may disable this option to speed up the debugger start.

5. Start the Debugger.

   Use the Start/Stop Debug Session toolbar button to start debugging the program.

   Or

   Use the µVision command, Debug — Start/Stop Debug Session, to start debugging the program.
