MCBTMPM360 User's Guide
Introduction
Setup
Theory of Operation
Block Diagram
Schematics
Technical Data
Prototyping
Microcontroller
Power Supply
JTAG Interface
ETM Interface
LEDs
Push Buttons
Potentiometer
USB Interface
CAN Interface
Writing Programs
Example Programs
LEDs

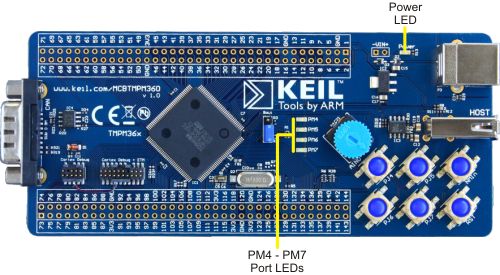

The MCBTMPM360 board has the following LED indicators:
- The POWER LED indicates that power is present on the board and shows the status of the USB DC voltage of 5 Volts.
- The 4 Port LEDs marked PM4 - PM7 connect to the respective pins on the PM port. These LEDs are useful for indicating program status while testing your applications.
