MCBTMPM360 User's Guide
Introduction Setup
Theory of Operation
Block Diagram Schematics Technical Data Prototyping Microcontroller Power Supply JTAG Interface ETM Interface LEDs Push Buttons Potentiometer USB Interface CAN Interface Writing Programs Example ProgramsPush Buttons

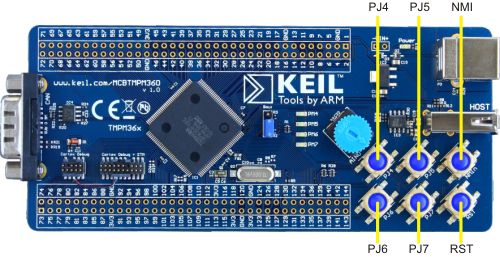

The six push buttons on the MCBTMPM360 board are:
- The RST push button connects to the voltage monitor and the power-up reset circuit. This resets the microcontroller.
- The NMI push button connects to pin N80 of the microcontroller controlling the non-maskable interrupt (NMI) of the TMPM360F20FG device.
- The PJ4 - PJ7 push buttons connect to pins PJ4 - PJ7 (Port PJ, bits 4-7) of the microcontroller, respectively.
