Introduction

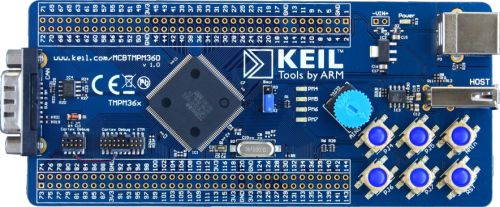

You may use the Cortex-M3 based MCBTMPM360 Evaluation Boards to generate and test application programs for the Toshiba TMPM360Fxxx microcontroller family. With this hands-on process, you can determine the hardware and software requirements for current and future product development.

This board is available in two variants: the MCBTMPM360 and the MCBTMPM364.

• The MCBTMPM360 is populated with the Toshiba TMPM360F20FG microcontroller.
• The MCBTMPM364 is populated with the Toshiba TMPM364F10FG microcontroller.

The MCBTMPM364 board has more RAM and Flash memory than the MCBTMPM360 board, and supports USB Host and CAN interfaces.

Note

• Except as noted, this manual uses MCBTMPM360 as a generic term to refer to the MCBTMPM360 or MCBTMPM364 board.
