Prototyping

The MCBTMPM330 board provides locations for connecting all 100 pins of the TMPM330FDFG device, 3.3VDC and ground.

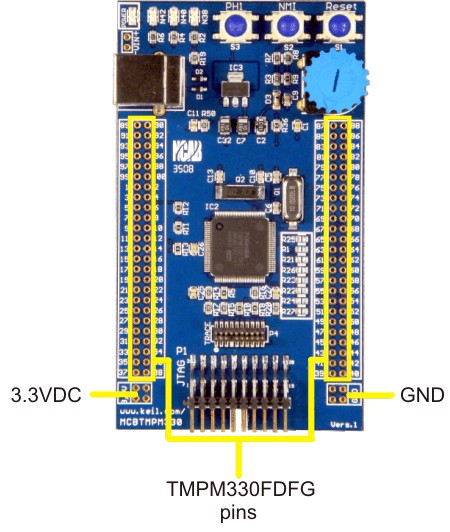

MCBTMPM330 Board Prototyping Area

Note

  • All microcontroller signals are brought out to pins and are driven directly by the microcontroller. Exercise caution to avoid overloading these signal lines.
