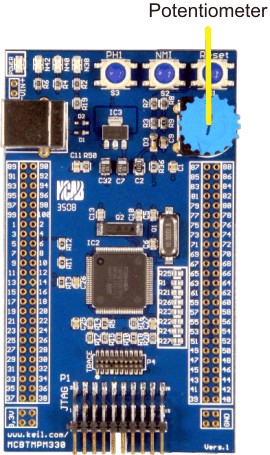

The potentiometer on the MCBTMPM330 board connects to port pin PD0 (AN4). The voltage range is 0.0-3.3 Volts.
