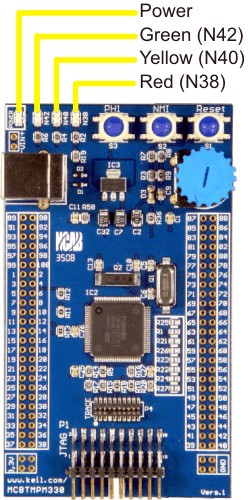

The MCBTMPM330 board has the following LED indicators:
- The POWER LED indicates that power is present on the board and shows the status of the USB DC voltage of 5 Volts.
- The Red (N38) LED indicates Port I, bit 0 status.
- The Yellow (N40) LED indicates Port I, bit 1 status.
- The Green (N42) LED indicates Port I, bit 2 status.
