The ETM Interface connector provides low-level trace debugging support for the TMPM330FDFG device.

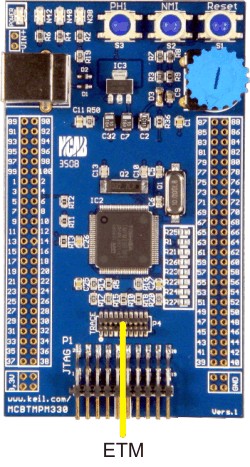

A 20-pin header (Samtec FTSH-120) is included at location P4 for connecting to ETM Trace hardware.
