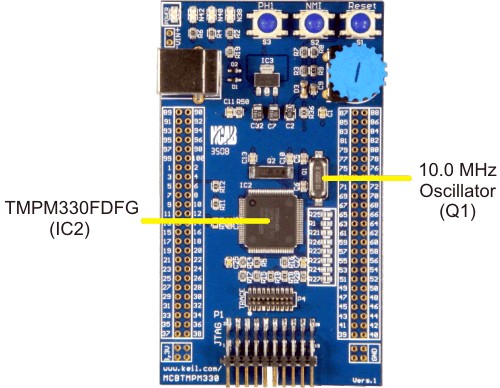

The Toshiba TMPM330 microcontroller (IC2) provided with the MCBTMPM330 board is a high-end TMPM330FDFG device with on-chip JTAG and ETM support.
A 10.0 MHz oscillator (Q1) provides the clock signal for the MCU.
