MCBTMPM330 User's Guide
Introduction Setup
Theory of Operation
Block Diagram Schematics Technical Data Prototyping Microcontroller Power Supply JTAG Interface ETM Interface LEDs Push Buttons Potentiometer USB Connector Writing Programs Example ProgramsPush Buttons

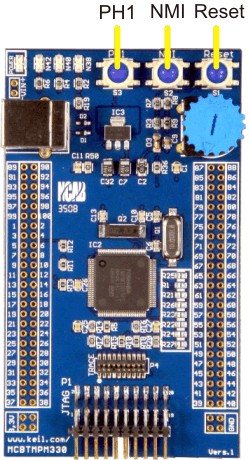

The three push buttons on the MCBTMPM330 board are:
- The Reset (S1) push button connects to the voltage monitor and the power-up reset circuit. This resets the microcontroller.
- The NMI (S2) push button connects to pin N80 of the microcontroller controlling the non-maskable interrupt (NMI) of the TMPM330FDFG device.
- The PH1 (S3) push button connects to pin N31 (Port H, bit 1) of the microcontroller.
